검사설비

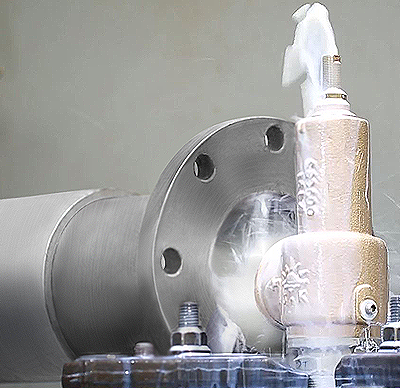

Air Test Equipment

- Test for Pressure Safety Valve
   · Fluid : Air
   · Max. Test Pressure 2175psi(150bar)
   · TANK CAPACITY : 5.7m3
   · COMPRESSOR CAPACITY : 111 m3/h

- Test Range
   · SCREW TYPE : 1/2” ~ 2”(15~50A)
   · FLANGE TYPE : 1/2”~8”(15~200A)

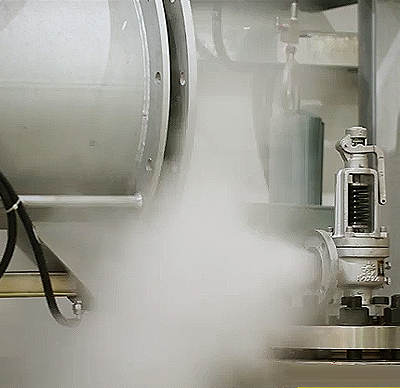

Steam Test Equipment

- Test for Pressure Safety Valve
   · Fluid : Steam
   · Max. Pressure : 3,555psi(224 bar)
   · Tank Capacity : 2.6m3
   · Boiler Capacity : 1,000kg/h

- Test Range
   · FLANGE TYPE : 1/2”~8”(15~200A)

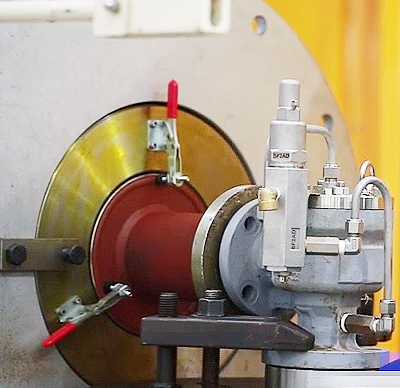

Liquid Test Equipment

- Test for Pressure Safety Valve
   · Fluid : Liquid
   · Max. Pressure : 1,450psi(100bar)
   · Pump Capacity : 1,100 m3/m

- Test Range
   · Flange Type : 1/2”~8”(15~200A)

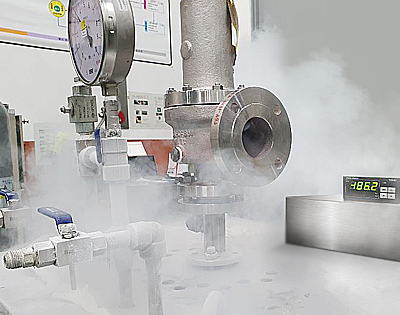

Cryogenic Test Equipment

- Control Panel
   · Nitrogen/Helium adjustment, Temperature/Pressure RECORDER

- Chamber
   · Deeping / Leakage Test Chamber ? 3 ea

- Applicable connection flange size
   · 1/2”~8”(15~200A)

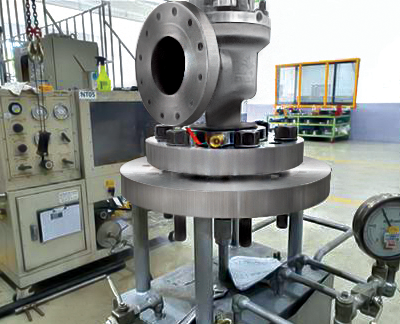

High Pressure Test Equipment

- Test for Pressure Safety Valve
   · Fluid : N2
   · Max. Pressure : 420 bar

- Test Range
   · Screw Type : 1/2” ~ 2”(15~25A)
   · FLANGE TYPE : 1/2”~8”(15~200A)
